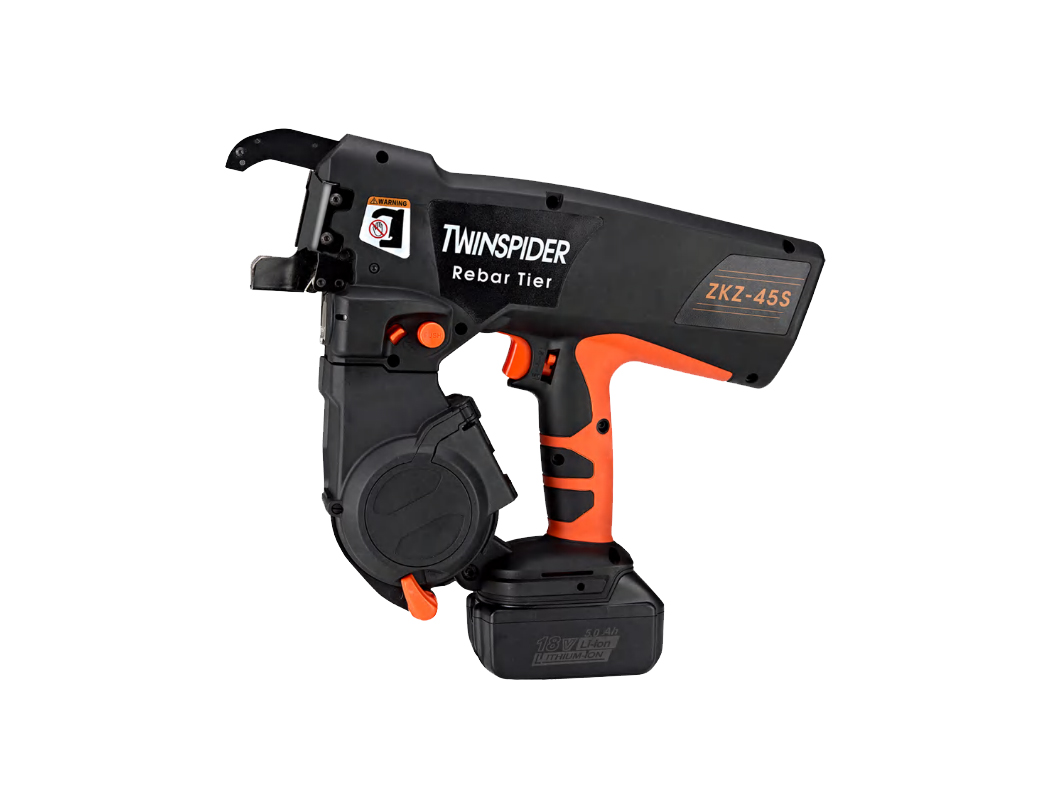

Standard Rebar Tier Kit
MODEL: TwinSpider ZKZ-45S
DESCRIPTION
TwinSpider ZKZ-45S Size:310x225x68mm
Tie rebars #3x#3 to #5x#5
SurSpider developed the World’s smart lightest cordless powered rebar tying tool since 2015, the tying success rate over 99.2 % approved by SGS. The technology is quite different with all others by patents for invention. The main parts (mechanical part, circuit board and brushless motor) passed 1 million times life test. The light weight, durability and smart design make SurSpider the most acceptable rebar tier in the industry, especial for precast concrete manufacturers who need continuous lots of rebar tying.
10 ADVANTAGES
click to view each detail picture
Compact size
315x215x68mm
1 SurSpider Tier =
4 Workers
Different Jaws exchange
80% battery life left after 3
years using (Samsung
battery core)
One key adjust tying power
and wire length
Passed one million times life
test
99.2% tying success rate
approved by SGS all knots are
standard
Easier maintain and repair by
simplifed design
25 exclusive patents
protection
Most competitive price make rebar tier
popular all over the world
SURSPIDER
INTELLIGENT
REBAR TIER
Surspider rebar tier can be widely used in buildings, bridges, roads, railways, infrastructure and even other special projects. The intelligent rebar tying technology take place of hand tying, it improve the work efficiency and make less workers needed.
SPECIFICATION
| Model | ZKZ-60S |
| HXWXL | 300x120x350 mm |
| Ties Per Charge | Approx3800 |
| Tying Capacity | Rebar Mesh 29x32mm(#9x#10) |
| Tying speed(s) | Approx 0.5 sec |
| Recharge Time | Approx 70Minutes |
| Voltage | DC18V(5.0AH) |
| NW | 2.3 Kgs |
| Wire Coil | ZKZ-33T |
| Wire Diameter | 1.0mm |
| Wire Length | 33m x2 |
| Ties Per Coi | Approx150to260 ties |
| Charger | ZKZ-4A |
| Recharge Time |
Approx 70Minutes |
| Input Voltage/Current |
110-240V AC,50/60HZ/ 4.0A |
| Output Voltage/Current |
18VDC/5.0AH |
COMPARING WITH OTHERS
| Surspider Tier | Japanese Tier | Other Chinese Tier | |
| Weight | 1.15kg | 3kg | 1.8 kg |
| Intelligent Level | Full automatic intelligent operation, single motor for all function, portable, fast and efficient | Automatic operation, double motor for all function, heavy and low efficiency | Semi-automatic operation, low good tie rate, low efficiency |
| Wire Length Per Tie | 40 cm | 60 cm | 45 cm |
| Working Time Per Charge | 3-12 hours | 2 hours | 1-1.5 hours |
| Heat Dissipation | Built-in radiator, very good effect | Natural cooling, normal effect | Natural cooling, normal effect |
| Water Resistant | Good water resistant, can work in rainy day | Non-waterproof | Non-waterproof |
ACCESSORY
